Humbucker Pickup Kit
Humbucker Pickup Kit
Looking to build your own classic humbucker from scratch? This kit includes all the essential components to assemble a humbucker pickup with two 50 mm coils—one with adjustable poles and one with fixed slugs—an Alnico 5 bar magnet, spacers, mounting hardware and full wiring options.
The mix of adjustable poles and fixed slugs gives you full control over string-to-string output balance. To suit different wiring preferences, the kit includes both a vintage-style push-back braided wire and a 4-conductor shielded cable, perfect for modern setups like coil splitting or phase switching.
Also included are the metal baseplate, plastic and metal spacers, and a standard-size Alnico 5 magnet bar. The layout is inspired by PAF-style humbuckers, making it compatible with most classic humbucker covers on the market.
You can choose from three metal cover finishes: nickel, chrome, or gold. All covers are 50 mm wide and fit the included coils perfectly.

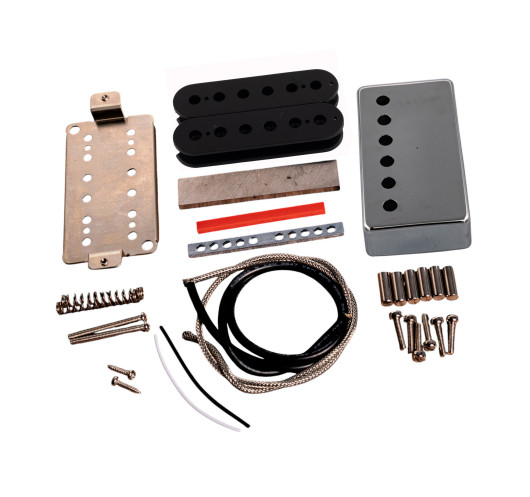

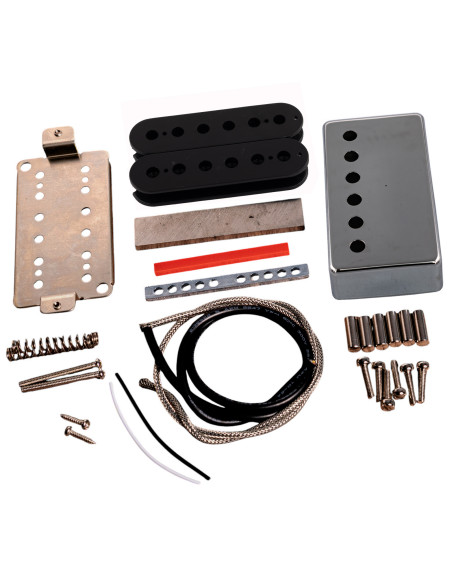

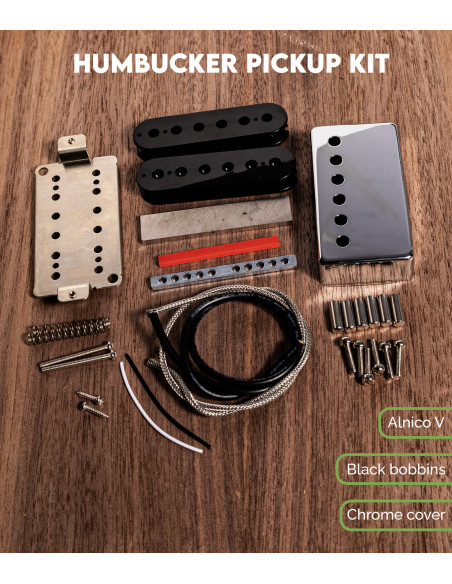

Included Components
- 1 adjustable pole coil (50 mm)
- 1 slug coil (50 mm)
- 6 adjustable pole screws (2.8 x 12 mm, nickel)
- 6 fixed slugs (4.8 x 12.5 mm)
- 1 black plastic wire
- 1 white plastic wire
- 1 metal baseplate (50 mm)
- 2 pickup height adjustment springs (30 mm)
- 2 pickup height screws
- 4 mounting screws
- 1 metal spacer (50 mm)
- 1 plastic spacer (50 mm)
- 1 Alnico 5 bar magnet (63.5 x 12.7 x 3.2 mm)
- 1 vintage-style push-back wire (33 cm)
- 1 4-conductor shielded cable (33 cm)
- 1 metal cover (select finish: nickel, chrome or gold)
Recommended Tools & Materials
To complete your pickup, you’ll need a few specialized tools and materials, many of which are available in our store:
- Magnet Polarity Tester
- 42 AWG Enamel Pickup Wire
- Pickup Cloth Tape
- Pickup winder
- Soldering iron
- Multimeter
- Type of accessory
- Electronic
