Templates and Mould Violin Stradivarius Titian 1715

This set is designed to provide a precise and durable working base. It includes all the necessary templates to trace the full instrument: outer and inner outlines, archings, corners, f-holes and neck. The pieces are cut from 2 mm rigid transparent acrylic, 3 mm and 12 mm MDF, and 1 mm flexible styrene—stable materials that hold up well to frequent use in the workshop. The set includes steel pins for the inner mould, ensuring rigidity and consistency in layout.

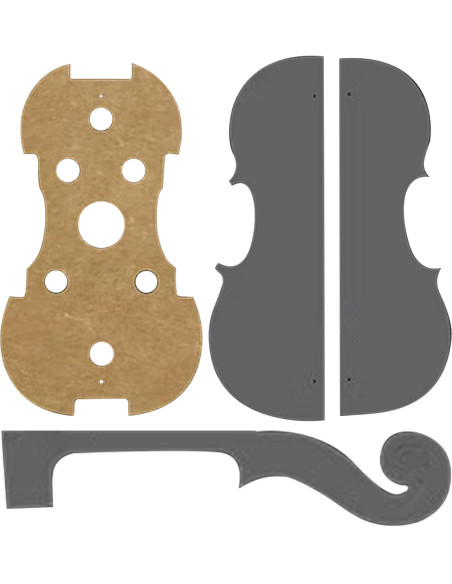

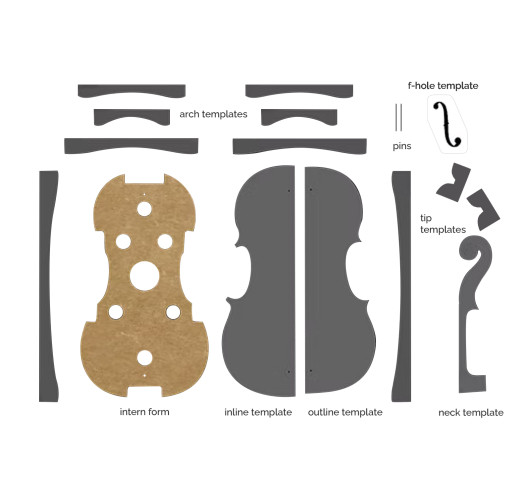

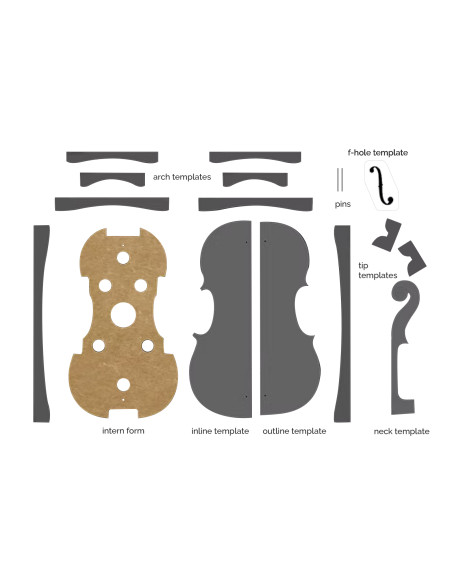

The kit includes:

• 1 Inner mould – MDF 12 mm – rigid
• 1 Outer template – acrylic 2 mm – rigid
• 1 Inner template – acrylic 2 mm – rigid
• 8 Arching templates – MDF 3 mm – rigid
• 2 Corner templates – MDF 3 mm – rigid
• 1 Neck template – acrylic 2 mm – flexible
• 1 F-hole template – styrene 1 mm – flexible
• 2 Pins – steel

This set corresponds to the Stradivarius “Titian” 1715 model, one of the most balanced designs from the golden period. It’s based on the “P” mould, with a compact outline that many luthiers consider a solid starting point for achieving clarity and tonal response.

We also offer templates for other historical violin models. To check availability, contact our team at [email protected]. Available models include:

• Giovanni Paolo Maggini – Violin 1630
• Carlo Giuseppe Testore – Violin 1703
• Pietro Guarneri of Mantua – Violin 1704
• Antonio Stradivari – Violin 1709 “Viotti”
• Antonio Stradivari – Violin 1727 “Benvenuti”
• Antonio Stradivari – Violin 1734 “Willemotte”
• Carlo Bergonzi – Violin 1735 “Baron Knoop”
• Guarneri del Gesù – Violin 1735 “Plowden”
• Guarneri del Gesù – Violin 1741 “Vieuxtemps”
• Guarneri del Gesù – Violin 1741 “Kochánski”
• Guarneri del Gesù – Violin 1745 “Leduc”
• Giovanni Battista Guadagnini – Violin 1774 “Salabue”, “Berta”

* The photographs shown are for illustrative purposes only. The set you will receive is specifically for the Stradivarius Titian 1715 model.

Technical Specifications

• Instrument: Violin
• Model: Stradivarius “Titian” 1715
• Material: Transparent acrylic, MDF and styrene
• Mould: “P” model
• Pins: Steel
