ST style MDF templates

Description Templates ST:

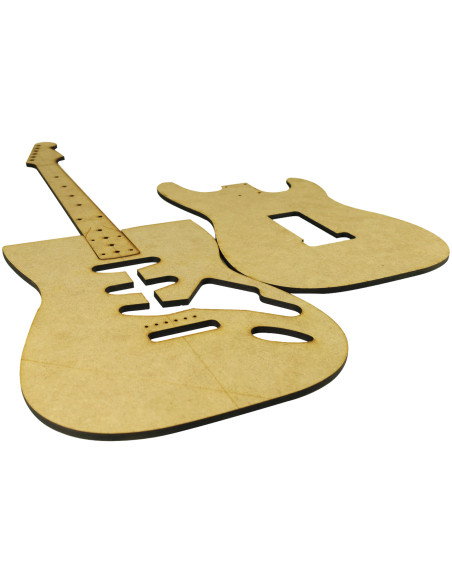

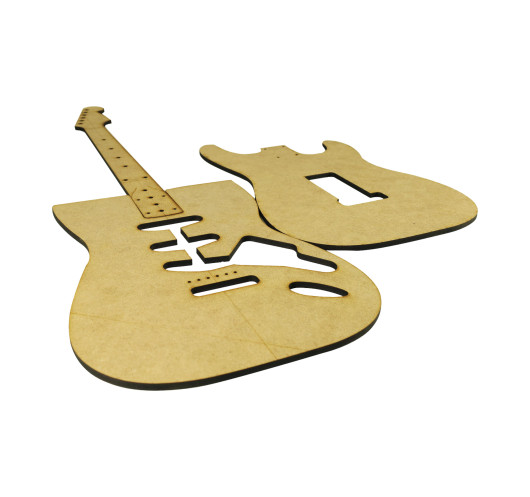

Laser cut templates made of MDF to make the Stratocaster electric guitar model.

The Stratocaster templates are 8 mm thick and consist of 3 parts: front, back and neck (55,5 mm).

These templates are for: the front, back and neck with the electronics cavities, neck block, peg holes, position markers, neck binding screws, bridge holes and holes for the tremolo bridge system. The neck socket is approximately 55.5 mm.

Read with attention:

Markings such as the bridge, nut and 12th fret are indicative. Always measure before starting any operation. Also, keep in mind that the laser cutting process creates a 0.3 mm channel, so the neck to body joint may have more play than desired. If your mast template does not fit tightly to the body template, we suggest that you use some masking tape around the mast template when milling or working on it. No returns will be accepted for this reason, as the channel left by laser cutting cannot be avoided.
