Straight Truss Rod Routing Jig

Overview Straight Truss Rod Routing Jig:

Save yourself the hassle of having to build your own jig and use our Straight Truss Rod Routing Jig for the demanding process of routing the truss rod channel. This template will allow you to be precise and firm in the slotting of the truss rod channel or any other reinforcement you may want to place longitudinally along the neck, such as carbon rods or the typical back strip of some Fender models.

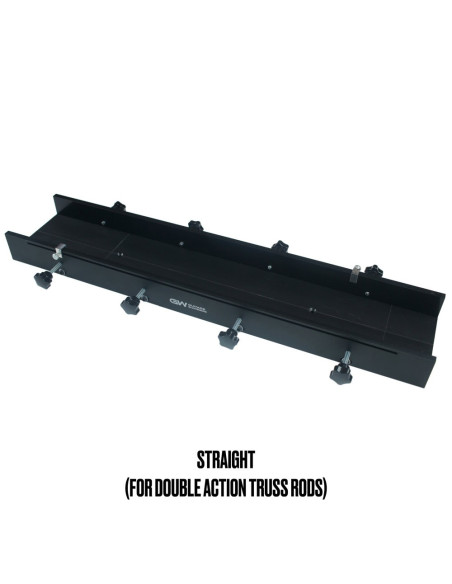

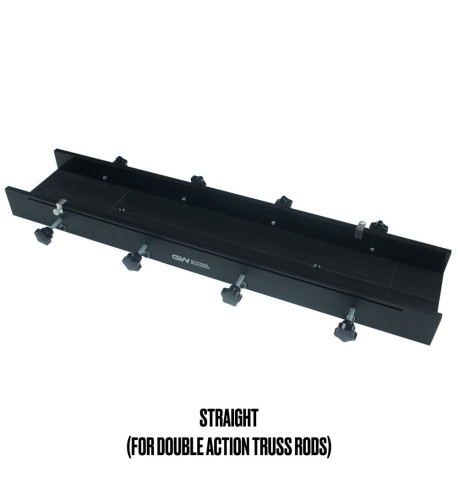

This template is straight and will only allow you to rout double-action truss rod channels. You can choose from templates for Dewalt D26200, Bosch GKF600, Makita RT0700C and Makita 3709.

Includes:

1x Straight Truss Rod Routing Jig

1x Acrylic Router Base

1x Acrylic Plunge Base

1x Bearing Support Pair

4x Router Fixing Screws

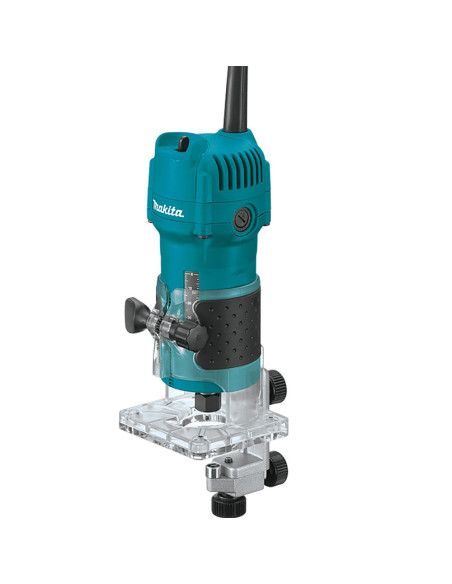

Remember that the routers shown in the photos are for reference only, they are NOT INCLUDED.

Features:

• Dimensions: 700x130x70 mm (disassembled)

• Material: Polyethylene and metal
