Neck Joint Routing Jig

Overview Neck Joint Routing Jig

This milling support is ideal for fitting the neck with the body in the construction of acoustic guitars in a faster and efficient way.

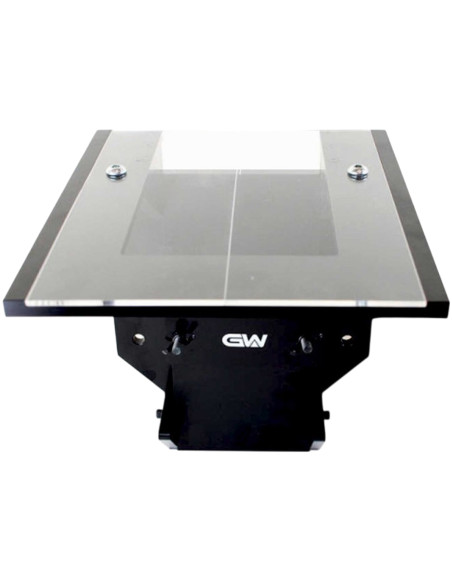

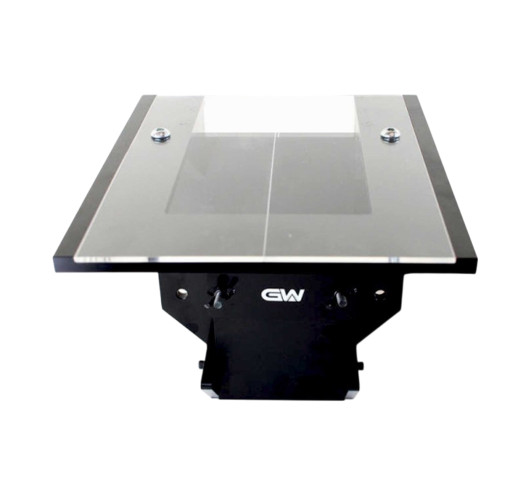

It is an easy to assemble metal structure designed to be screwed to your workbench and fix the neck in a vertical position in order to comfortably mill the shank that will be fitted into the guitar body. It also includes a transparent methacrylate piece that serves as a guide to place the axis of the neck in the center of the support.

Another great feature of this product is the possibility of modifying the angle of the insert, which can range from 0 to 6 degrees of inclination. This allows the possibility of using it for building guitars with angled necks such as archtop models.

The precision of the joint between the neck and the body is one of the most important issues that influence the quality of the instrument. This template will allow you to achieve a good gluing surface and a perfect alignment, fundamental for the structure of the guitar.

Notes:

• This structure has been designed to be used with milling templates, which are sold separately.
• The structure is sold unassembled, including all necessary screws and wrenches for easy assembly.
