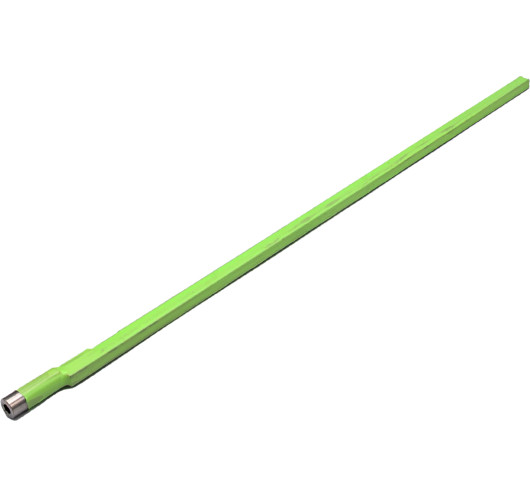

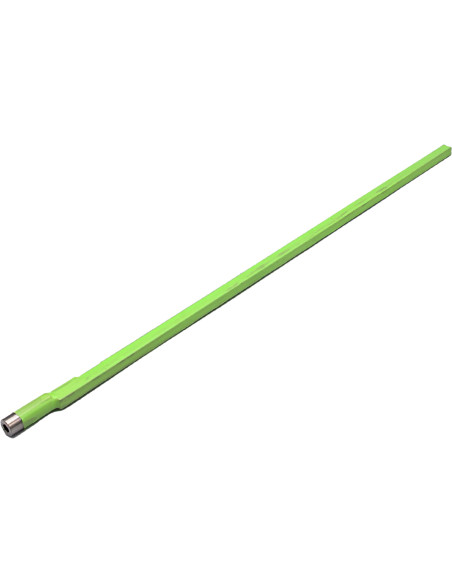

Single Action Steel Truss Rod 370mm

Single Action Steel Truss Rod 370mm

This single action truss rod made of steel is a solid and effective solution for adjusting the neck of acoustic or electric guitars. Its length also makes it suitable for mid-scale guitars, travel guitars, parlor models, or even baritone ukuleles with reinforced necks.

The rod is heat-shrink wrapped, offering several workshop advantages: protection against corrosion, smoother installation, and a cleaner finish. The steel construction ensures stability and strength, even under demanding tension or humidity conditions.

This model has a total length of 370 mm and comes with a 4 mm Allen key, ready to install.

Technical Specifications

• Type: Single action truss rod
• Total length: 370 mm
• Material: Steel
• Weight: 125 g
• Adjustment: 4 mm Allen key (included)
• Application: Acoustic or electric guitars, parlor, travel, mid-scale, baritone ukuleles
• Mounting: Internal, straight channel

Detailed Measurements

• A1: 343 mm (active bar length)
• B1: 370 mm (total length)
• C1: 8.5 mm (bar width)
• D1: 12 mm (total height)
• E1: 26 mm (adjustment head length)
• F1: 9 mm (end diameter)
• G1: 6 mm (overall assembly width)

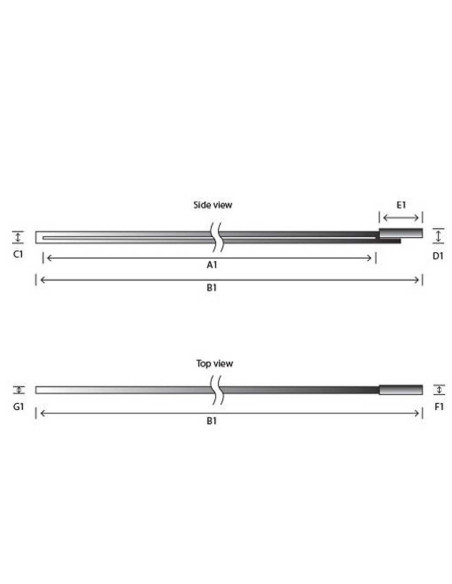

You can check the technical drawing with measurements in the attached image.
