Single Action Steel Truss Rod 338mm

Single Action Steel Truss Rod 338mm

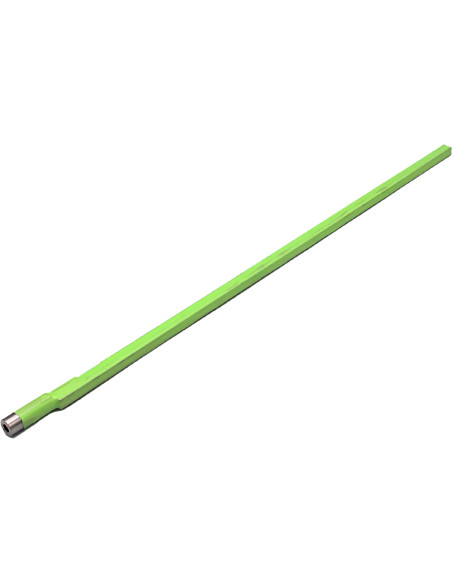

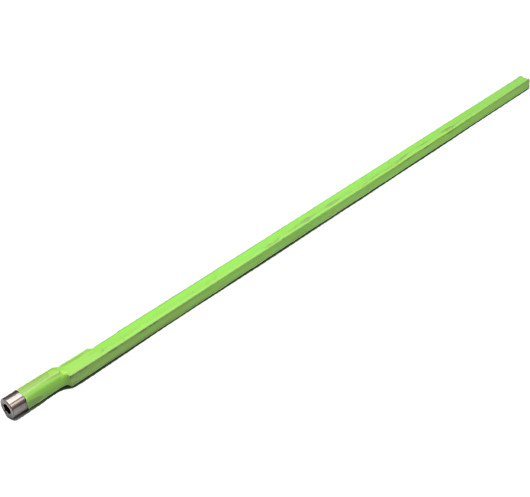

This single action truss rod made of steel is a solid and effective solution for adjusting the neck of instruments such as acoustic or electric guitars, short-scale guitars (parlor, 3/4, travel) or even baritone ukuleles. Its design allows precise control of neck relief, ensuring stability and playing comfort.

Steel provides excellent mechanical strength and long-term durability, maintaining its performance even under tension or in humid environments. In addition, the rod is heat-shrink wrapped, improving its reliability: the shrink tubing acts as a corrosion barrier, helps it slide easily into the channel, and ensures a cleaner installation.

This model has a total length of 338 mm and comes with a 4 mm Allen key, ready to install.

Technical Specifications

• Type: Single action truss rod
• Total length: 338 mm
• Material: Steel
• Weight: 115 g
• Adjustment: 4 mm Allen key (included)
• Application: Acoustic, electric, parlor, 3/4, travel guitars, baritone ukuleles
• Mounting: Internal, straight channel

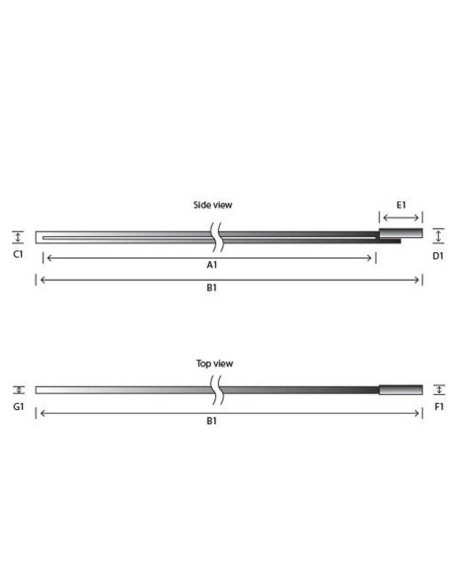

Detailed Measurements

• A1: 310 mm (active bar length)
• B1: 338 mm (total length)
• C1: 8.5 mm (bar width)
• D1: 12 mm (total height)
• E1: 26 mm (adjustment head length)
• F1: 9 mm (end diameter)
• G1: 6 mm (overall assembly width)

You can check the technical drawing with measurements in the attached image.
