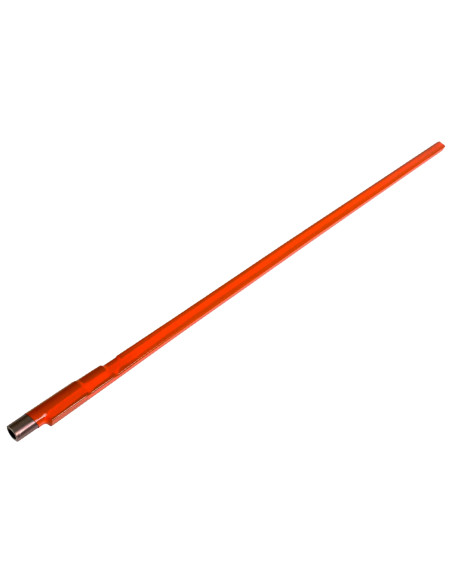

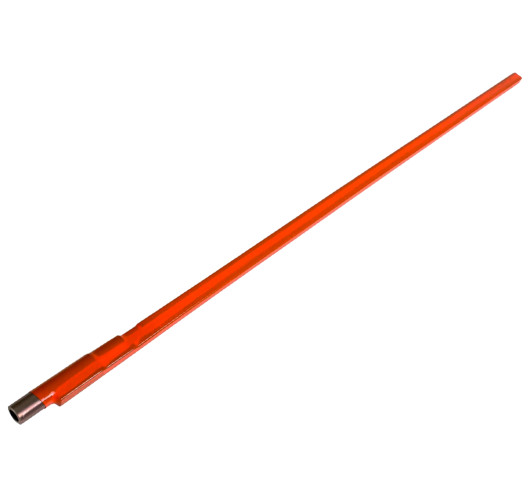

Titanium Dual-Action Truss Rod 400MM

Titanium Dual-Action Truss Rod 400MM

This dual-action truss rod, made of titanium and steel, is a lightweight and durable solution for adjusting the neck on electric or acoustic guitars. Unlike traditional single-action rods, it allows correction of neck curvature in both directions, providing greater control over setup and stability.

Titanium offers key advantages over steel: it’s significantly lighter, corrosion-resistant, and maintains its rigidity even under humidity or temperature changes. Thanks to its reduced mass, it also has less impact on the acoustic response of the neck.

This model has a total length of 400 mm and includes a 4 mm Allen key, ready for installation.

Technical Specifications

• Type: Dual-action truss rod
• Total length: 400 mm
• Material: Titanium and steel
• Weight: 80 g
• Adjustment: 4 mm Allen key (included)
• Application: Electric or acoustic guitars
• Installation: Internal, straight channel

Detailed Dimensions

• A1: 365 mm (active rod length)
• B1: 400 mm (overall length)
• C1: 8.5 mm (rod width)
• D1: 10 mm (total height)
• E1: 35 mm (adjustment head length)
• F1: 8 mm (end diameter)
• G1: 6 mm (overall assembly width)

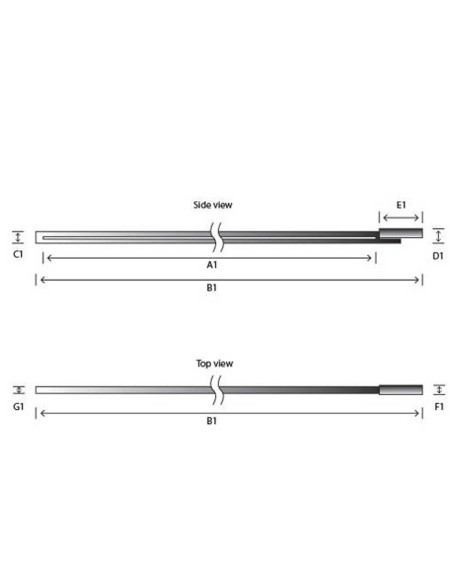

You can check the technical drawing with dimensions in the attached image.
