Neck Pickup Kit for Tele-style Guitar

Neck Pickup Kit for Tele-style Guitar

Want to build your own classic neck pickup for a Tele-style guitar? This kit is designed for luthiers and DIY enthusiasts who want to assemble a traditional pickup with Alnico 5 magnets, a fiber bobbin, and a metal cover.

This neck-position pickup uses six Alnico 5 magnets of equal height, just like vintage-style Tele pickups. The kit includes cloth-covered wire, mounting hardware, rubber spacers and all the elements needed for assembly.

You can choose between three metal cover finishes: nickel, chrome or gold. All covers are compatible with the standard Tele neck pickup format.

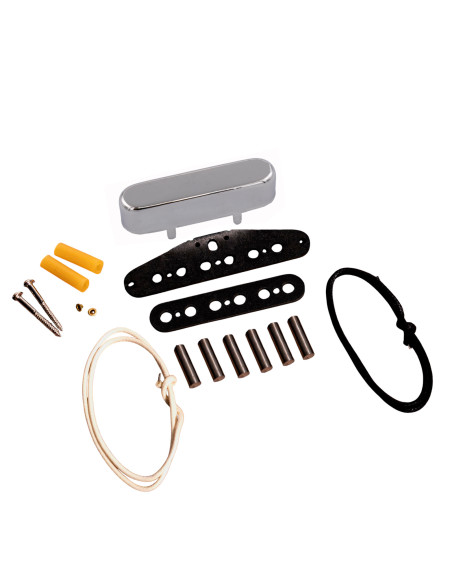

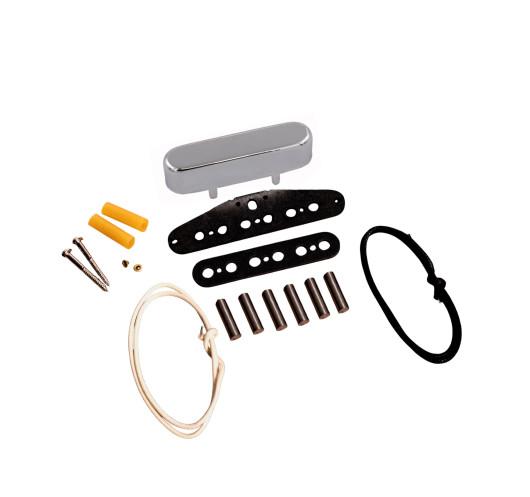

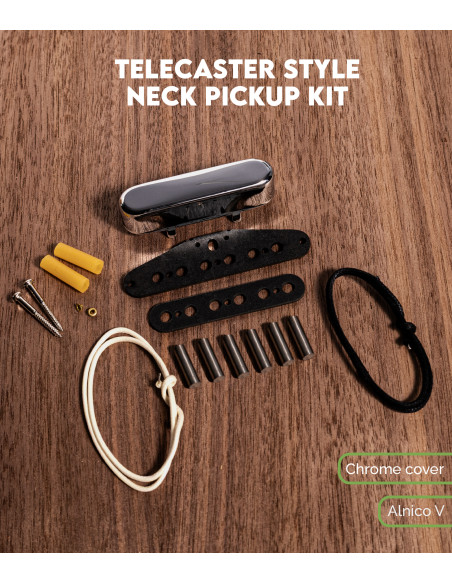

Included Components

• 1 fiber bobbin
• 2 brass eyelets (2 mm)
• 6 Alnico 5 rods (5 x 17 mm)
• 1 cloth-covered wire – black (30 cm)
• 1 cloth-covered wire – white (30 cm)
• 2 mounting screws (2.5 x 25 mm)
• 2 rubber tubing spacers
• 1 metal cover (select finish: nickel, chrome or gold)

Recommended Tools & Materials

To complete your pickup, you’ll need a few specialized tools and supplies, many of which are available in our store:

• Magnet Polarity Tester
• 42 AWG Enamel Pickup Wire
• Pickup Cloth Tape
• Pickup winder
• Soldering iron
• Multimeter
