MAG-ic Probe WiFi – Magnetic Thickness Caliper

MAG-ic Probe WiFi – Magnetic Thickness Caliper

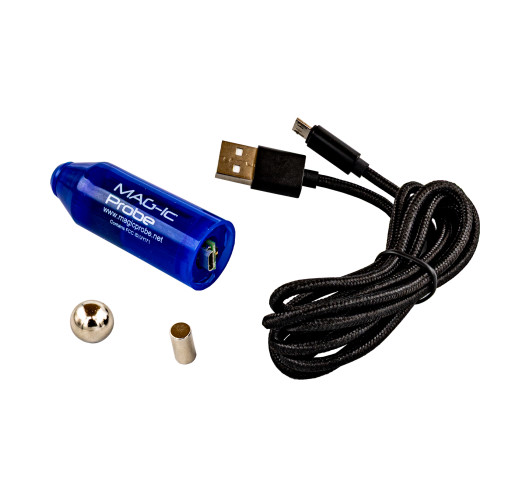

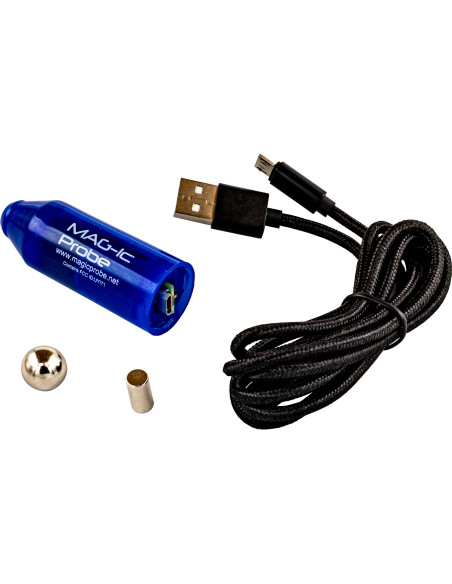

The MAG-ic Probe WiFi is an electronic caliper designed to accurately measure the thickness of tops, backs, and ribs on musical instruments, even when fully assembled. It uses a magnetic system with an external probe and an internal ball that align through the material, allowing precise readings without damaging the surface.

It works with wood and other non-ferromagnetic materials (plastics, aluminum, copper, composites) up to 15 mm thick. Measurements can be displayed in real time on any WiFi-enabled device, without the need for additional apps.

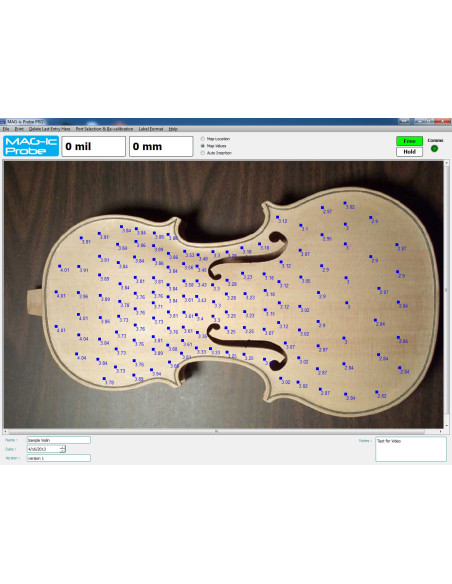

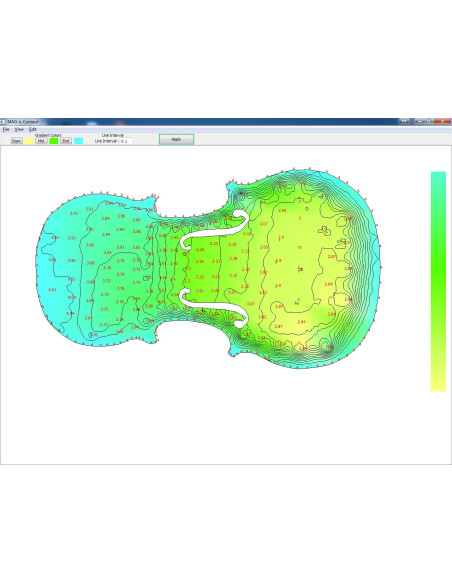

The free MAG-ic Probe Lite software lets you record readings directly onto an image of the instrument. The optional MAG-ic Probe PRO software generates full-color contour maps for advanced analysis.

https://www.magicprobe.net/mag-ic-probe-software-1/

A precise and efficient tool for luthiers who need to monitor the thickness of tops, backs, and other instrument components with maximum reliability—both in new builds and restorations.

Technical Specifications

• Instrument: Guitar, violin, cello, mandolin, bass, ukulele
• Compatible materials: Wood and non-ferromagnetic materials (plastics, aluminum, copper, composites)
• Maximum thickness: 15 mm
• Connectivity: WiFi, no apps required
• Readout: Thousandths of an inch (mils) and millimeters (mm)
• Included software: MAG-ic Probe Lite
• Optional software: MAG-ic Probe PRO (color contour mapping)
• Weight: 680 g (1.50 LBS)
