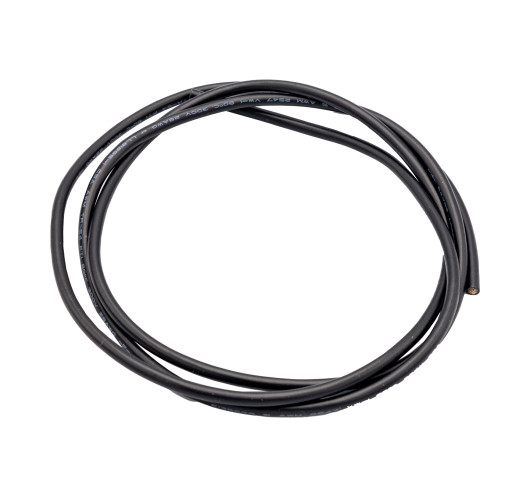

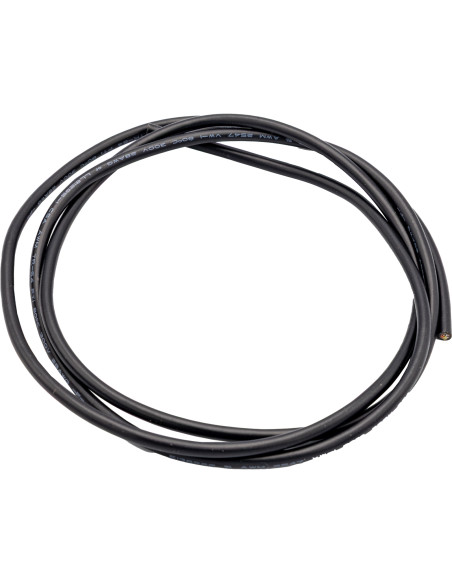

4 Conductor Shielded Cable 1m.

4 Conductor Shielded Cable 1m.

The 4-conductor cable is perfect for your guitar’s internal wiring. It features 28AWG wire, a 3.1mm outer diameter, and an inner core with four shielded 0.08mm² conductors, an unshielded ground wire, and aluminum foil insulation.

This cable provides greater tonal versatility, enabling coil splitting, series/parallel combinations, and phase switching. Additionally, it minimizes electrical noise in long connections, such as from the controls to the output jack, thanks to its shielded conductor grounded structure. It consists of polyethylene-insulated copper conductors, an outer shielding layer, and a black PVC jacket.

Technical Specifications:

• Jacket Color: Black
• AWG Section: 28AWG x 4
• Section mm²: 0.08mm² x 4
