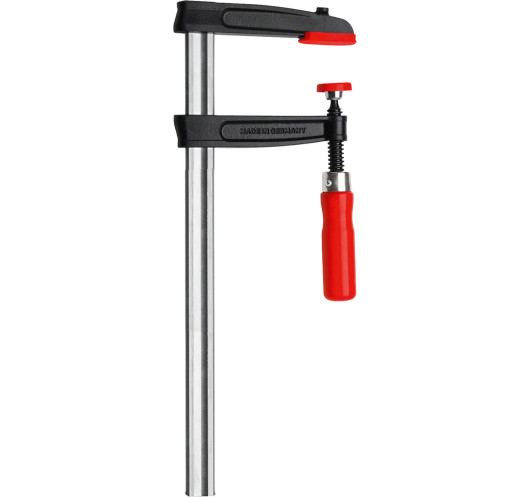

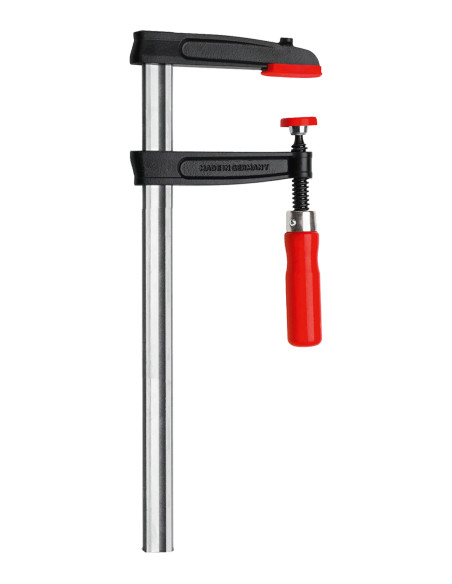

Bessey Bar Clamp TPN-BE 400/175

Bessey Bar Clamp TPN-BE 400/175

The Bessey TPN-BE 400/175 is a heavy-duty screw clamp ideal for lutherie work that requires firm and precise clamping during the gluing of tops, backs, necks, or fingerboards. Its reinforced malleable cast iron frame and galvanized steel rail ensure long-lasting durability in demanding workshop conditions.

With a clamping force of up to 5,500 N, this clamp is suitable for both delicate operations and joints requiring uniform pressure. The ergonomic wooden handle offers smooth and controlled tightening, and the jaws come equipped with removable plastic pads to protect the surface of soft or shaped tonewoods.

Technical Specifications

• Clamping capacity: 400 mm
• Throat depth: 175 mm
• Rail dimensions: 32 x 10 mm
• Clamping force: up to 5,500 N
• Weight: approx. 2.58 kg
• Material: Reinforced malleable cast iron and galvanized steel
• Handle: Ergonomic wooden grip
• Protection: Removable plastic jaw caps
