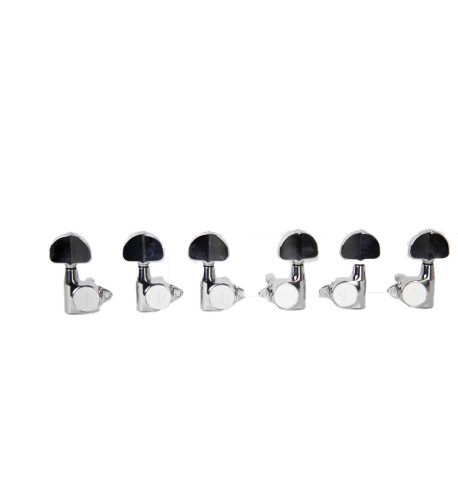

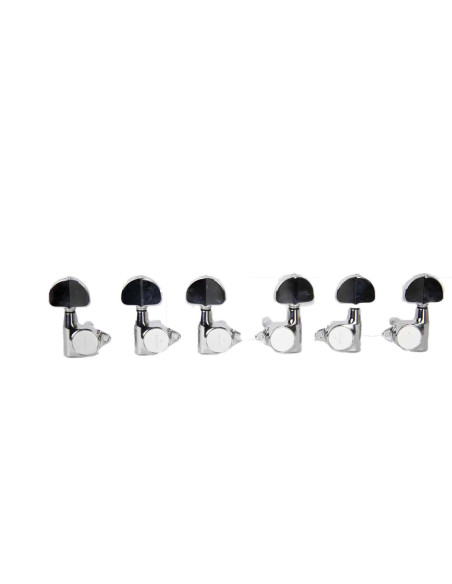

Gotoh machine head for acoustic and electric guitar SG301/AB20-LRC

Overview of the Gotoh machine head for acoustic and electric guitar SG301/AB20-LRC:

The SG301 machine head range features Gotoh's proprietary "Magnum" locking technology, which uses a knurled wheel on the back of the tuner to hold the string securely in place. This mechanism also makes string changes very fast. Just feed the string through the peg hole and tighten the wheel to keep your strings in position and tune for longer.

Solid brass gears with a 1:18 ratio offer a good balance between tuning speed and accuracy.

 Rock-Solid string post technology eliminates unwanted rattling of the gears, posts, and body assembly. Incorporating particular elastic components maximizes the transmission of string vibrations, significantly improving tuning stability. The posts remain strong even during intensive tremolo use.

 Each headstock is permanently sealed and lubricated with Gotoh's 'Lubri-Coat' technology. This non-degradable lubricant ensures better contact between the worm and sprocket, reducing backlash, and greatly improving the accuracy and durability of each tuner.

This model of machine head for acoustic and electric guitars has the following features:

• 3 left and 3 right layouts.
• Magnum Lock for quick and easy string changes
• 1:18 gear ratio for greater tuning accuracy
• Rock-Solid string post eliminates string rattle and stays strong during bending and tremolo use
• Lubri-Coat' applied to the worm gear for smooth engagement and durability

Machine head technical features:

• Machine head hole diameter: 10mm.
• Arrangement: L3/R3
• Finish: Chrome
• Button: A20 Aluminum
• Gear ratio: 1:18
• Weight: 230 grams
• Screws: 6 screws included
