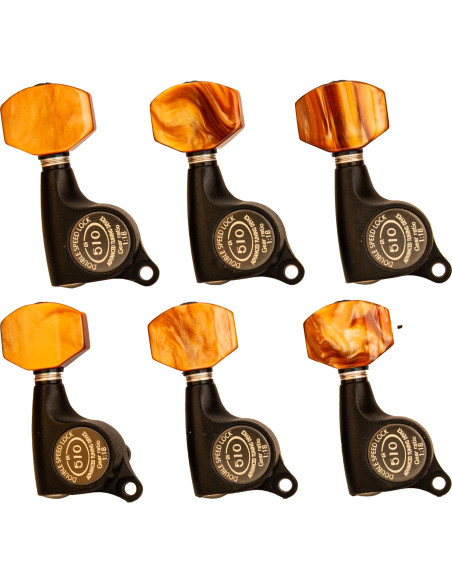

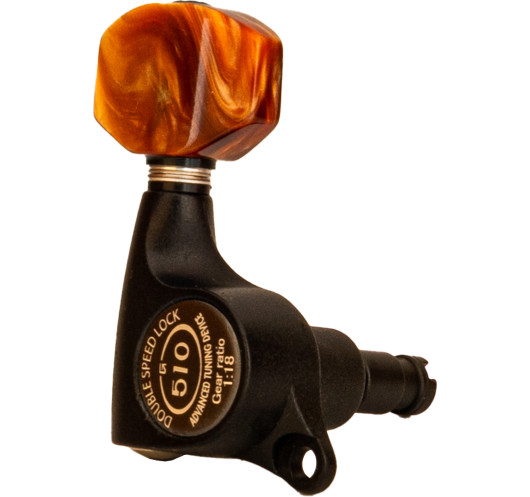

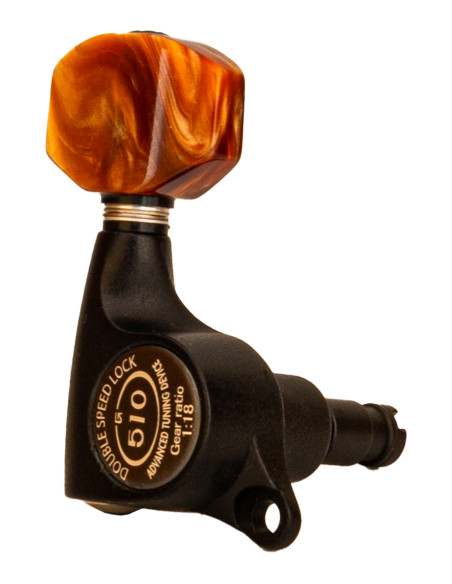

Gotoh SGS510ZMG/P8-LBS - Black Satin - Amber Pearl Buttons - Locking

The Gotoh SGS510ZMG/P8-LBS belongs to the renowned 510 series, widely considered a benchmark for smooth feel, tuning stability and long-term mechanical reliability. This 6-in-line set features the MG-T Magnum Lock (Double Speed Lock) system, allowing faster restringing and extremely secure tuning even with heavy bending or vibrato use.

The Black Satin finish (LBS) provides a clean, modern and durable aesthetic. The P8 amber-pearl buttons add a warm classic touch, creating a visually striking contrast with the satin hardware.

ROCK SOLID™: reduces shaft wobble and increases tuning stability for cleaner vibration transfer.

LUBRI-PLATE™: exclusive lubrication process that enhances gear smoothness, durability and friction-free operation.

Technical Specifications

• Instrument: Electric guitar
• Model / Series: Gotoh SGS510Z
• Configuration: 6-in-line
• Locking System: MG-T Magnum Lock (Double Speed Lock)
• Finish: Black Satin (LBS)

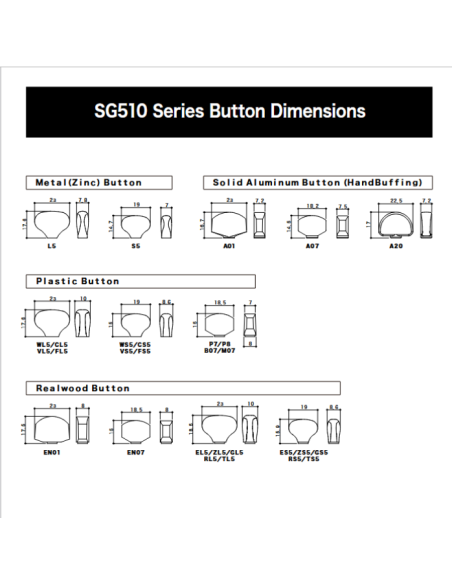

• Buttons: P8 – Amber pearl (plastic)
• Gear Ratio: 1:18
• String Post Type: MG-T (1–3 short 18.5 mm / 4–6 long 20 mm)
• Approx. Weight: 30.7–36.8 g per unit (≈ 210 g per set)
• Installation: Requires 10 mm headstock hole
• Origin: Japan

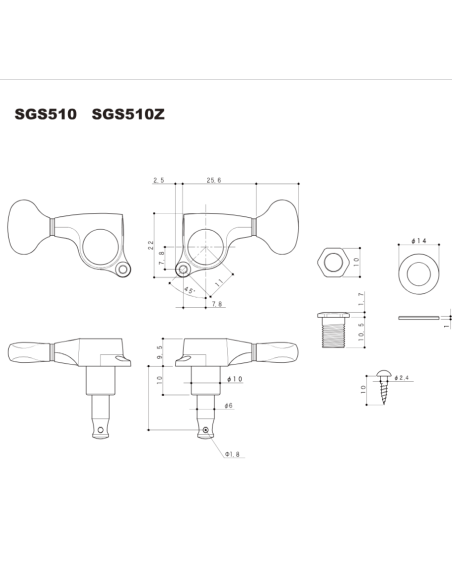

Dimensions

• Post diameter: Ø6 mm
• Post height (1st–3rd): 18.5 mm
• Post height (4th–6th): 20 mm
• Screw diameter: Ø1.8 mm

Why choose the Gotoh SGS510ZMG/P8-LBS

A premium tuner featuring exceptional mechanical precision, modern aesthetics and one of the most reliable locking systems available. Perfect for high-end instruments, custom builds and performance-focused upgrades.

Compatibility

Suitable for electric guitars with 6-in-line headstocks. Direct replacement for most modern and vintage-style designs.
