Tapered Reamer 3-13mm for Acoustic Guitar Bridge Pins

Tapered Reamer 3-13mm for Acoustic Guitar Bridge Pins

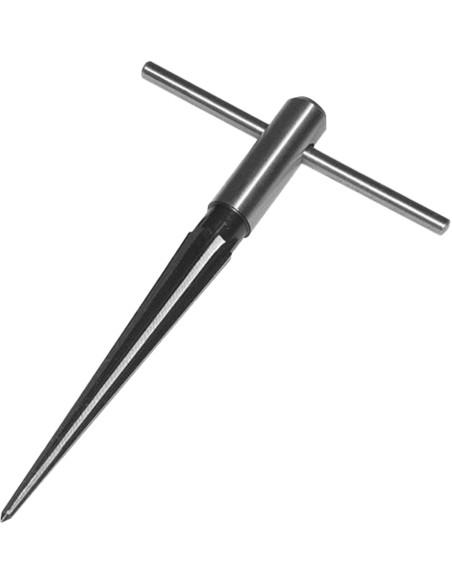

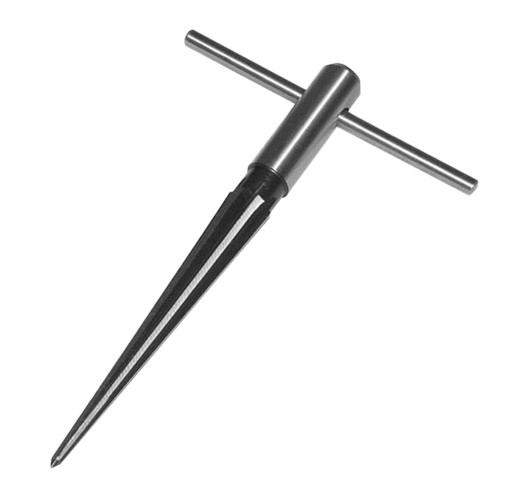

Tapered reamer with a working range of 3 to 13mm in diameter and a 6° cone angle, designed to shape and fit the holes for bridge pins in acoustic guitars. The working length is 95mm, with a total length of 142mm and a 12mm diameter shaft compatible with column drills and hand drills.

Three cutting edges distributed along the taper allow progressive material removal, producing a clean interior finish and a uniform taper. Its conical geometry makes it particularly well suited for matching the hole taper to the bridge pin profile, ensuring a precise fit without play.

Beyond its specific use for bridge pin holes, it is a versatile tool for enlarging or tapering any hole in wood within its working range. Made from steel. Weight: 89g.

Technical Specifications

• Diameter range: 3 to 13mm
• Cone angle: 6°
• Working length: 95mm
• Total length: 142mm
• Shaft diameter: approx. 12mm
• Material: Steel
• Weight: 89g
