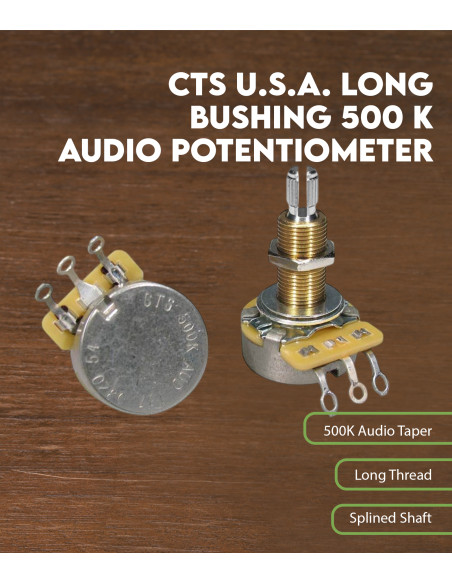

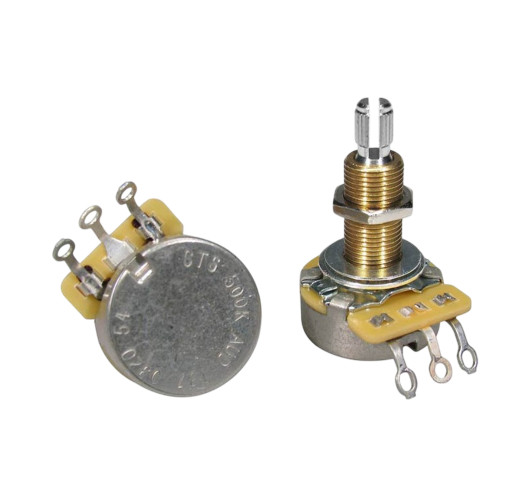

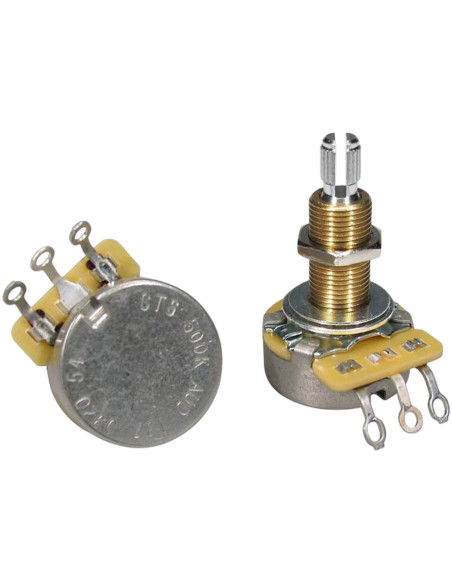

CTS 500 K Audio Pot Long Thread Knurled Shaft

CTS 500 K Audio Pot Long Thread Knurled Shaft

The CTS 500 K audio potentiometer with a long-thread knurled shaft is a high-quality component designed to deliver precise and reliable tone or volume control in Les Paul–style guitars and other instruments with carved or thick tops.

It features a logarithmic (audio) taper and a tight ±10% resistance tolerance for smooth, progressive response. The brass split shaft with 24 fine splines ensures compatibility with imperial-size push-on knobs (not metric). With a thread diameter of 9.52 mm (3/8") and a long thread length of 19 mm (3/4"), it’s ideal for guitars with thick tops or carved maple caps. Supplied with one flat washer, one lock washer, and one hex nut for secure mounting.

Technical Features

• Type: Audio potentiometer (logarithmic taper)
• Resistance: 500 KΩ
• Tolerance: ±10%

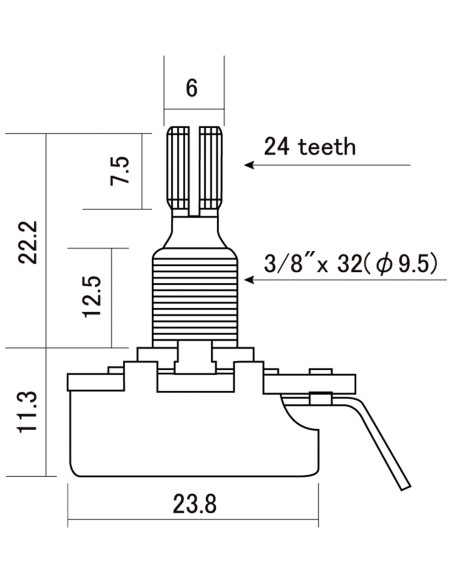

• Thread length: 19 mm (3/4")
• Thread: 9.52 mm (3/8") × 32 TPI
• Taper: Logarithmic (audio)
• Shaft: Brass, split, 24 fine knurled splines
• Mounting hole diameter: 9.5 mm (3/8")
• Includes: One flat washer, one lock washer, one hex nut
• Application: Les Paul–style and carved-top guitars
