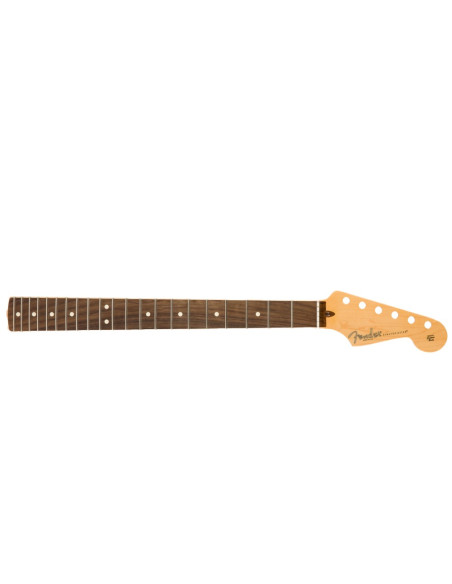

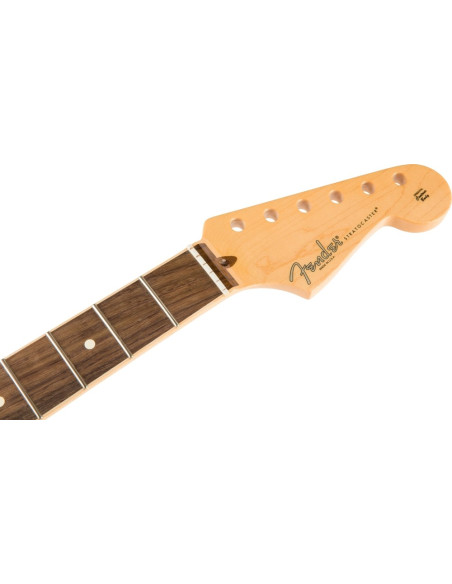

General description of the Fender American Channel Bound Stratocaster® Neck

The Fender American Channel Bound Stratocaster Neck is a high quality, uniquely styled piece designed and manufactured in the USA to the same specifications as the original Fender instruments. The maple neck features a slim "modern C" profile and a 9.5"-14" compound radius rosewood fingerboard with a more rounded shape towards the nut for easier chord playing, and a flatter radius in the upper register to allow for sweeping bends without mismatch.

This neck also features the Fender serial number and stamp for authenticity, as well as authentic "Made in U.S.A." and "Original Contour Body" decals on the headstock. In addition, the fingerboard is "fluted", which means it is inlaid directly into the neck creating a sleek style.

If you're looking for a high quality, uniquely styled piece for your guitar, the Fender American Channel Bound Stratocaster Neck is an excellent choice.

This replacement neck is compatible with Fender or Squier® by Fender guitars.

Fender American Channel Bound Stratocaster ® neck features:

• Maple Stratocaster neck with walnut stripe
• Channel-bound 9.5”-14” compound-radius fingerboard
• 21 medium jumbo frets; vintage ivory inlays
• Hand-rubbed polyurethane finish with gloss headstock
• Pre-slotted synthetic bone nut; Bi-Flex™ truss rod
• Six two-guide-pin tuning machine holes; requires 4-bolt neck plate

Specifications:

• Neck shape: modern "C"
• Fingerboard material: Rosewood
• Neck material: Maple
• Nut Material: Synthetic nut bone
• Position inlays: Vintage ivory dots
• Neck finish: Satin urethane finish on back of neck with gloss urethane headstock front
• Truss Rod Nut: 1/8" hex adjustment
• Truss Rod: Bi-Flex™
• Fingerboard Radius: 9.5" to 14" (241 mm-355.6 mm) compound radius
• Scale length: 25.5" (64.77 cm)
• Nut width: 42.86 mm (1.6875")
• Number of frets: 21
• Fret Size: Medium Jumbo
• Headstock Thickness: .540" (13.71 mm)
• Neck Thickness: 1st Fret - .820" (20.82 mm), 12th Fret - .870" (22.09 mm)
• Peg Hole Diameter: .404" (10.26 mm)
