Gotoh GE101Z-T Stop Tailpiece Les Paul Chrome

Gotoh GE101Z-T Stop Tailpiece Chrome Tune-o-Matic Les Paul Style

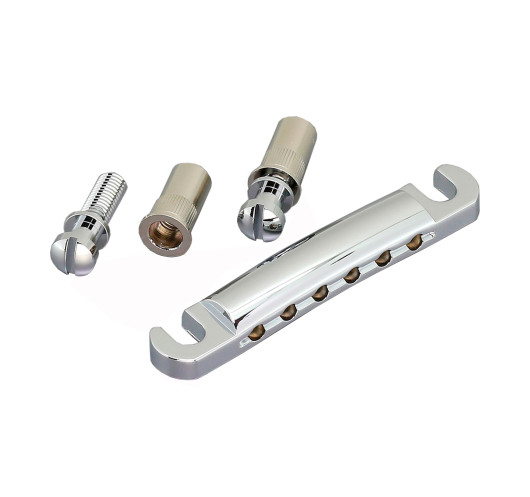

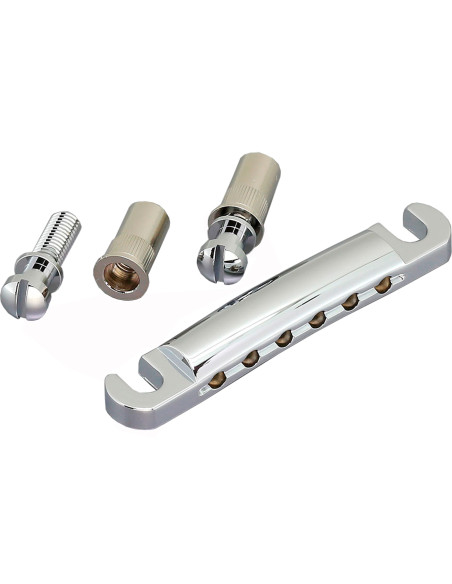

The Gotoh GE101Z-T is a traditional stop bar tailpiece designed for electric guitars equipped with Tune-o-Matic bridges, commonly found on Les Paul® style instruments.

Made from zinc die-cast, it provides a reliable replacement or hardware upgrade for guitars using standard 82 mm post spacing.

Includes metric M8 height adjustment studs and press-fit bushings for direct installation. Manufactured in Japan under Gotoh precision standards.

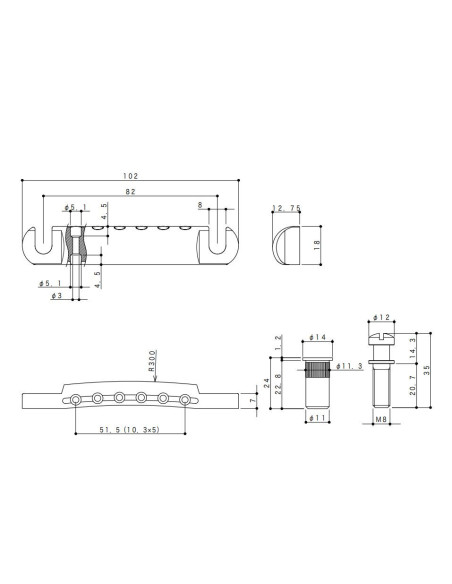

Technical Specifications

• Model: GE101Z-T-C
• Brand: Gotoh
• Type: Stop bar tailpiece
• Material: Zinc die-cast
• Individual string spacing: 10.3 mm (0.41")
• Total string spacing: 51.5 mm (2.03")
• Post spacing: 82 mm (3.23")
• Dimensions: 102 x 18 x 13 mm (4.02" x 0.71" x 0.51")
• Studs: Metric M8 height adjustable
• Includes: Studs and press-fit bushings
• Finish: Chrome
• Made in: Japan
